我个人配置 VSCode 上 C++ 开发环境的方法，同时也是我的常用配置
安装#
- 安装编译器（GCC/MSVC）
略
- 安装 LLVM（提供clangd，可选）、CMake、Ninja
Ninja 是一个以速度为目标的构建系统，为 CMake 一类的构建配置生成器使用
我使用 Scoop （Windows）安装，更加方便，也可以从官网下载安装包使用。
scoop install cmake llvm ninja
VSCode安装插件#
- C/C++ Extension Pack
用于快速配置debugger等
- clangd
为 C++ 提供了更高级的智能补全、错误检查、自动格式化等
- CMake Tools & CMake
前者提供了 CMake 的侧边栏和调试配置等内容，后者提供了更好的hover信息
code --install-extension ms-vscode.cpptools-extension-pack llvm-vs-code-extensions.vscode-clangd ms-vscode.cmake-tools twxs.cmake
配置#
配置 clangd#
插件配置#
VSCode 内 F1/Ctrl+Shift+P 输入并选择 Preferences: Open User Settings (JSON)，将如下配置插入到末尾
// 关闭另一个插件的 C++ IntelliSense
"C_Cpp.intelliSenseEngine": "disabled",
"[cpp]": {
"editor.defaultFormatter": "llvm-vs-code-extensions.vscode-clangd",
},
"clangd.arguments": [
// 读取config.yaml中配置的内容
"--enable-config",
"--all-scopes-completion",
// 补全模式：detailed(区分不同函数签名)/bundled(合并函数名相同，签名不同的函数)
"--completion-style=detailed",
// 默认的 clang-format 样式
"--fallback-style=LLVM",
// 自动插入include，不一定是你想要的那个
"--header-insertion=iwyu",
// 缓存：disk(存放在${workspaceFolder}/.cache，需要加入到.gitignore)/memory
"--pch-storage=disk",
// 线程数量
// "-j=8",
// 启用 clang-tidy
"--clang-tidy"
],
config.yaml#
VSCode 内 F1/Ctrl+Shift+P 输入并选择 clangd: Open user configuration file，在新打开的文件内根据 clangd Configuration
配置。
以下是我的配置，使用 --- 划分为三个部分，需要和 If 搭配使用。第一个部分是通用的 C++ 项目配置，在 Windows 上需要保证 CompileFlags/Compiler 为 clang-cl 才能更方便地使用 clangd。第二个部分是针对不同文件匹配的模板和两个示例，默认不匹配任何内容。第三部分是全局配置，包含 ClangTidy 和其他相应配置
# ref: https://clangd.llvm.org/config
# should create project-specific configuration in the root folder
If:
PathExclude: [.*\.c, .*\.h]
CompileFlags:
# Add:
# - -std:c++20
# Remove:
# - -std*
Compiler: clang-cl
Style:
QuotedHeaders: ["src/.*"]
AngledHeaders: ["third-party/.*", "3rd/.*"]
---
If:
PathMatch: $^
PathExclude: .*
CompileFlags:
Add:
- -std=[c++23/c17]
- -x[c++/c++-header/c/c-header]
- -isystem-after "absolute/include/path"
- -D KEY=VALUE
Remove:
- -std*
- -x*
Compiler: clang[/++]
Style:
QuotedHeaders: ["src/.*"]
AngledHeaders: ["third-party/.*"]
# # c source
# If:
# PathMatch: .*\.c
# CompileFlags:
# Add:
# - -std=c17
# - -xc
# Remove:
# - -std
# - -x*
# Compiler: clang
# # c header
# If:
# PathMatch: .*\.h
# CompileFlags:
# Add:
# - -std=c17
# - -xc-header
# Remove:
# - -std
# - -x*
# Compiler: clang
---
# global configuration
Index:
Background: Build
StandardLibrary: true
Diagnostics:
Suppress: []
ClangTidy:
Add:
- bugprone-*
- cppcoreguidelines-*
- modernize-*
- performance-*
- readability-*
Remove:
- modernize-use-std-print
- bugprone-easily-swappable-parameters
- modernize-use-trailing-return-type
- cppcoreguidelines-owning-memory
- performance-avoid-endl
- readability-identifier-length
- readability-qualified-auto
# CheckOptions:
# readability-identifier-naming.VariableCase: CamelCase
FastCheckFilter: Loose
UnusedIncludes: Strict
Includes:
IgnoreHeader: []
AnalyzeAngledIncludes: false
MissingIncludes: Strict
Completion:
AllScopes: true
InlayHints:
Enabled: true
ParameterNames: true
DeducedTypes: true
Designators: true
BlockEnd: false
TypeNameLimit: 24
Hover:
ShowAKA: true
SemanticTokens:
DisabledKinds: []
DisabledModifiers: []
配置 clang-format#
请注意，如果你希望保存时自动格式化，请配置
"editor.formatOnSave": true，更多自动格式化选项请搜索 format.clang-format#
在项目的根目录或者项目目录的任何父目录中创建文件 .clang-format 并根据 Clang Format Style Options
配置
以下是我的配置
BasedOnStyle: LLVM
# indent - general
IndentWidth: 4
TabWidth: 4
UseTab: Never
ColumnLimit: 120
# indent - specific
IndentAccessModifiers: false
AccessModifierOffset: -2
IndentCaseLabels: false
IndentWrappedFunctionNames: true
LambdaBodyIndentation: Signature
# align
AlignTrailingComments: true
# empty line
MaxEmptyLinesToKeep: 1
SeparateDefinitionBlocks: Leave
EmptyLineBeforeAccessModifier: LogicalBlock
EmptyLineAfterAccessModifier: Leave
# code break
BreakStringLiterals: false
AlwaysBreakTemplateDeclarations: Yes
AllowShortIfStatementsOnASingleLine: false
AllowShortLoopsOnASingleLine: false
AllowShortFunctionsOnASingleLine: All
AllowShortEnumsOnASingleLine: false
BinPackArguments: true
BinPackParameters: true
# BreakBeforeBraces: Custom
# BraceWrapping:
# AfterCaseLabel: false
# AfterClass: ture
# AfterEnum: false
# AfterStruct: false
# SplitEmptyFunction: false
# misc
PointerAlignment: Left
配置 cmake#
插件配置#
VSCode 内 F1/Ctrl+Shift+P 输入并选择 Preferences: Open User Settings (JSON)，将如下配置插入到末尾
"cmake.generator": "Ninja",
"cmake.preferredGenerators": [
"Ninja",
],
"cmake.launchBehavior": "breakAndReuseTerminal",
"cmake.sourceDirectory": "${workspaceFolder}",
"cmake.pinnedCommands": [
"cmake.quickStart",
"cmake.configure",
"cmake.cleanConfigure",
"cmake.build",
"cmake.cleanRebuild",
"cmake.launchTarget",
],
"cmake.options.advanced": {
"build": {
"statusBarVisibility": "visible",
"inheritDefault": "visible"
},
"launch": {
"statusBarVisibility": "visible",
"inheritDefault": "visible"
},
"debug": {
"statusBarVisibility": "hidden",
"inheritDefault": "visible"
}
},
// 这三个关闭了自动配置，如果你需要相应功能就删除
"cmake.configureOnEdit": false,
"cmake.configureOnOpen": false,
"cmake.automaticReconfigure": false,
CMakePresets.json#
在项目根目录创建文件 CMakePresets.json 并根据 CMake Presets
配置
以下是我的配置，如果你不使用vcpkg，删除 toolchainFile
{
"version": 8,
"configurePresets": [
{
"name": "base",
"hidden": true,
"generator": "Ninja Multi-Config",
"binaryDir": "${sourceDir}/build",
"installDir": "${sourceDir}/build/install/${presetName}",
"toolchainFile": "$env{VCPKG_ROOT}/scripts/buildsystems/vcpkg.cmake",
"cacheVariables": {
"CMAKE_EXPORT_COMPILE_COMMANDS": "true"
}
},
{
"name": "native",
"inherits": "base",
"displayName": "Native",
"condition": {
"type": "notEquals",
"lhs": "${hostSystemName}",
"rhs": "Windows"
}
},
{
"name": "msvc-x64",
"inherits": "base",
"displayName": "Native - MSVC x64",
"architecture": {
"value": "x64",
"strategy": "external"
},
"toolset": {
"value": "host=x64",
"strategy": "external"
},
"cacheVariables": {
"CMAKE_C_COMPILER": "cl.exe",
"CMAKE_CXX_COMPILER": "cl.exe"
},
"condition": {
"type": "equals",
"lhs": "${hostSystemName}",
"rhs": "Windows"
}
}
],
"buildPresets": [
{
"name": "native",
"configurePreset": "native",
"displayName": "Ninja Multi-Config"
},
{
"name": "native-debug",
"inherits": "native",
"displayName": "Native Debug",
"configuration": "Debug"
},
{
"name": "native-release",
"inherits": "native",
"displayName": "Native Release",
"configuration": "Release"
},
{
"name": "native-relwithdebinfo",
"inherits": "native",
"displayName": "Native RelWithDebInfo",
"configuration": "RelWithDebInfo"
},
{
"name": "msvc-x64",
"configurePreset": "msvc-x64",
"displayName": "Ninja Multi-Config - MSVC x64"
},
{
"name": "msvc-x64-debug",
"inherits": "msvc-x64",
"displayName": "Native Debug - MSVC x64",
"configuration": "Debug"
},
{
"name": "msvc-x64-release",
"inherits": "msvc-x64",
"displayName": "Native Release - MSVC x64",
"configuration": "Release"
},
{
"name": "msvc-x64-relwithdebinfo",
"inherits": "msvc-x64",
"displayName": "Native RelWithDebInfo - MSVC x64",
"configuration": "RelWithDebInfo"
}
]
}
运行#
新建一个文件夹，创建 main.cpp 文件，写入测试代码：
#include <iostream>
int main() {
std::cout << "Hello, World!" << std::endl;
return 0;
}
VSCode 内 F1/Ctrl+Shift+P 输入并选择 CMake: Quick Start
- 输入项目名称
example - 选择 C++
- 选择 Executable
- 不选中 CPack/CTest，点击OK
- 选择
main.cpp，点击OK
此时自动创建的 CMakeLists.txt 将会出现，同时左侧边栏会出现 CMake 的按钮

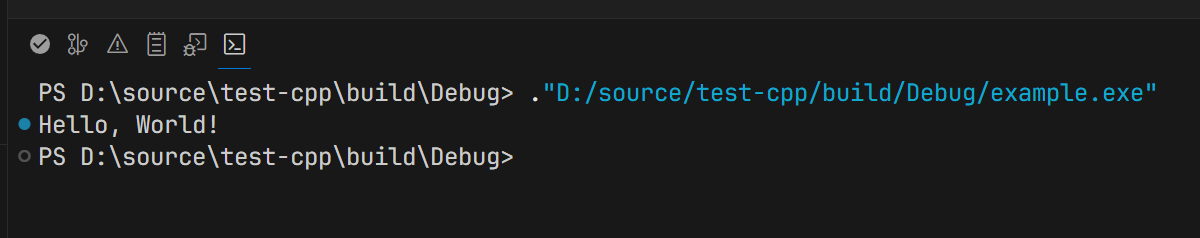

选中后会出现相应的设置项，但是现在我们先不管。单击下方状态栏中的运行按钮或者按 F5（调试运行）/Ctrl+F5（运行）
此时就会正确运行项目
